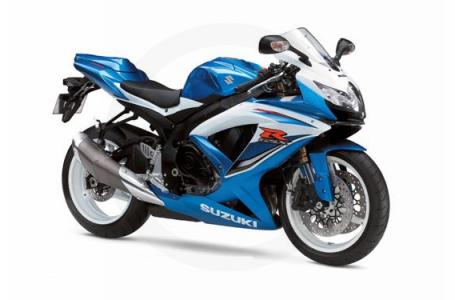

2009 Suzuki GSX-R600
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine Features
    • Compact and lightweight 599cc 4-stroke, 4-cylinder, liquid-cooled engine designed with optimum performance and responsiveness in mind
    • Electronic fuel injection system features Suzuki Dual Throttle Valve (SDTV) system - with dual fuel injectors per cylinder and new compact 8 hole, fine spray injectors for improved fuel atomization.
    • Combustion chamber shape features a compression ratio of 12.8:1for maximum performance
    • Forged aluminum alloy pistons are designed to work with 12.8:1compression ratio, iridium spark plugs and combustion chamber shape.
    • Exhaust cam tappets diameters are now larger at 25.0mm for maximum flexibility in cam profile design
    • Large ventilation holes located between the cylinder bores are designed for reduced internal pumping pressure and minimal mechanical losses
    • Suzuki Idle Speed Control (ISC) system for improved cold starting, consistent idle quality and reduced emissions
    • Proven S-DMS engine management system allows the rider to choose from three engine settings to match riding conditions with a handlebar mounted switch
    • High volume Suzuki Advanced Exhaust System (SAES) with an innovative under engine chamber leading to a large volume muffler with a distinctly shaped triangular silencer
    • Under deceleration the back torque limiting clutch reduces pressure on the clutch plates for smoother downshifting and corner entry
    • Hydraulic cam chain tensioner automatically adjusts while reducing noise and mechanical losses.
    • Clutch cover and oil pan feature internal ribs for increased rigidity and reduced engine noise
    • Suzuki Exhaust Tuning system is built into the mid-pipe using a servo-controlled butterfly valve to tune the exhaust system to match engine rpm and improving low end torque
    • Ignition coil outer diameter is designed for reduced weight and the starter motor uses rare earth magnets for a compact lightweight design
    • 32 bit ECM features 1024 kilobytes of ROM for maximum engine performance working in conjunction with the S-DMS engine management system
    Chassis Features
    • Sharp bodywork design features an aggressive new look featuring a bold headlight design and angular tail section for the GSX-R600
    • Electronically controlled steering damper uses a solenoid valve to move a tapered needle reducing or increasing oil flow to adjust damping force.
    • Three headlight layout features a projector low beam and multi-reflector headlamps for left and right high beams creating improved light distribution
    • Lightweight cast aluminum wheels featuring an angled spoke design for improved rigidity, reduced unsprung weight and improved acceleration
    • Diecast aluminum seat rail features an updated two piece design for reduced weight
    • Lightweight Tokico single piston rear brake caliper is mounted on a new rear caliper bracket for ease of maintenance when removing the rear wheel or working on the rear brake
    • Stylish fuel tank features a GSX-R1000 inspired design and provides 4.5 gallons of fuel.
    • Aggressive new overall design features a well balanced combination of compactness with the high performance look of a GSX-R
    • An aluminum-alloy frame utilizing five cast sections is engineered to deliver the ideal balance of rigidity for improved handling and less weight
    • Braced aluminum alloy swingarm is rigid with a large swingarm pivot and the swingarm assembly is designed for optimum suspension feedback and rear wheel traction
    • Innovative rear suspension linkage features a forged aluminum alloy link and one piece forged aluminum alloy link rod designed to increase traction and reduce side loads
    • Inverted 41mm Showa front forks are fully adjustable for rebound, compression and preload settings with optimum rake and trail dimensions for incredible cornering performance.
    • Showa 46 mm aluminum alloy rear shock features a 16mm rod and is completely adjustable for rebound, high and low speed compression and preload damping
    • Radial mount four piston front brake calipers works with new lightweight 310mm front brake rotors and a revised front brake master cylinder
    • Three way adjustable footpegs now feature die-cast construction and can be moved into three different positions with a 14mm horizontal and vertical range
    • The compact lightweight instrument cluster features a step motor controlled analog tach, LCD speedometer, dual tripmeters, clock, fuel reserve and a gear position indicator
    Specifications
    • Engine: 599 cc (36.5 cu. In), 4-stroke, liquid-cooled, DOHC
    • Bore Stroke: 67.0 mm (2.638 in) x 42.5 mm (1.673 in)
    • Compression Ratio: 12.8 : 1
    • Fuel System: Fuel injection
    • Lubrication: Wet sump
    • Ignition: Electronic ignition (Transistorized)
    • Transmission: 6-speed constant mesh
    • Final Drive: RK525SMOZ8, 114 links
    • Overall Length: 2040 mm (80.3 in)
    • Overall Width: 715 mm (28.1 in)
    • Overall Height: 1125 mm (44.3 in)
    • Seat Height: 810 mm (31.9 in)
    • Ground Clearance: 130 mm (5.1 in)
    • Wheelbase: 1400 mm (55.1 in)
    • Curb Weight: 196 kg (432 lbs)
    • Suspension Front: Inverted, telescopic, coil spring, oil damped
    • Suspension Rear: Link type, coil spring, oil damped
    • Brakes Front: Disc brake, twin
    • Brakes Rear: Disc brake
    • Tires Front: 120/70ZR17M/C (58W), tubeless
    • Tires Rear: 180/55ZR17M/C (73W), tubeless
    • Fuel Tank Capacity: 17.0 L (4.5/3.7 US/Imp gal)
    • Color: Black, Blue/White, Orange/Black, White

    Specifications

    Engine
    Engine Type 4-stroke, liquid-cooled, DOHC
    Displacement 599 cc (36.5 cu. in.)
    Bore and Stroke 67.0 x 42.5 mm (2.638 x 1.673 in.)
    Cooling Liquid-cooled
    Compression Ratio 12.8 : 1
    Fuel System Fuel injection
    Ignition Electronic ignition (Transistorized)
    Chassis
    Front Suspension Inverted, telescopic, coil spring, oil damped
    Front Brakes Disc brake, twin
    Front Tire 120/70ZR17M/C (58W), tubeless
    Rear Suspension Link type, coil spring, oil damped
    Rear Brakes Disc brake
    Rear Tire 180/55ZR17M/C (73W), tubeless
    Dimensions
    Dry Weight 432 lbs. (196 kg)
    Fuel Capacity 3.7 gal (17.0 l)
    Wheelbase 55.1 in. (1400 mm)
    Seat Height 31.9 in. (810 mm)
    Transmission
    Transmission 6-speed constant mesh
    Final Drive RK525SMOZ8, 114 links
    General
    Speedometer LCD
    Tachometer Analog
    Colors Black, Blue/White, Orange/Black, White

    Compare Models

    		 Print








    Year 2009
    Manufacturer Suzuki
    Model GSX-R600
    Style Sport
    MSRP* $10,399.00
    Chassis
    Front Suspension Inverted, telescopic, coil spring, oil damped
    Front Brakes Disc brake, twin
    Front Tire 120/70ZR17M/C (58W), tubeless
    Rear Suspension Link type, coil spring, oil damped
    Rear Brakes Disc brake
    Rear Tire 180/55ZR17M/C (73W), tubeless
    Dimensions
    Dry Weight 432 lbs. (196 kg)
    Fuel Capacity 3.7 gal (17.0 l)
    Wheelbase 55.1 in. (1400 mm)
    MPG
    Seat Height 31.9 in. (810 mm)
    Trail
    Rake
    Engine
    Engine Type 4-stroke, liquid-cooled, DOHC
    Displacement 599 cc (36.5 cu. in.)
    Bore and Stroke 67.0 x 42.5 mm (2.638 x 1.673 in.)
    Cooling Liquid-cooled
    Compression Ratio 12.8 : 1
    Fuel System Fuel injection
    Ignition Electronic ignition (Transistorized)
    General
    Speedometer LCD
    Tachometer Analog
    Odometer
    Colors Black, Blue/White, Orange/Black, White
    Warranty
    Transmission
    Transmission 6-speed constant mesh
    Final Drive RK525SMOZ8, 114 links
